Village Video Uplink

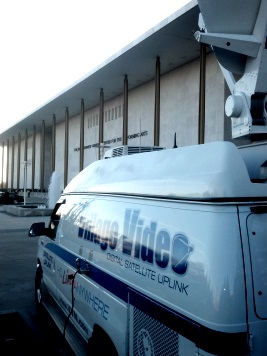

SidePhoto_t1_times

Truck 1 Now Based in Virginia.

Conveniently located just minutes away from route 95 and Richmond area
10D_231

Truck 1 Information
24_7 boxa

This digital satellite truck boasts a 1.8-meter carbon fiber antenna.
The truck is triple path HD or SD for your digital transmissions.

Inside is a AJA Ki-pro deck recording in apple pro-res HD or SD with 8 channels of audio.



600 feet of Fiber optic cable tac 4 system & 600 ft copper (2 video 3 audio).

Truck includes:

  • Dual & Xicom High power rendundant amplifiers with 1 to 1 auto switching
  • 3 Adtec EN81 M-peg 2/4 HD/SD DVBS-S2 16 channels of audio each
  • 3 2 Miteq Ku up-converters
  • 3 FS1 AJA cross converter/frame syncs
  • 3 Adtec TDR 60 IRDs (HD/SD receivers)
  • 1 Sencore HD/SD M-peg 4 IRD (decoder receiver)
  • 2 programmable/routable quad dispalys
  • 1 AJA KI Pro with 2 hard drives can record up to 8 channels embedded audio
  • 5 Licensed high power walkie talkies
  • 3 cell phones (Verizion AT&T & Sprint)
  • 1 Sony EX1 HD/SD camera for emergencies SDI 2 ch embedded audio
  • 1 HMI 200-watt frezzi with 110v & 14-30v ballasts
  • 1 HMI 575 watt Scathler
  • 1 Bit-stream analyzer
  • 1 Waveform Vector with eye-pattern and 16 channel audio monitoring
  • 1 7.5kw on-board gennerator
  • 1 2Kw portable Inverter Generator
  • 1 Telos link
  • 2 IFB wireless (and wired) transmitters
  • 4 Camera co-ord beltpack & headsets
